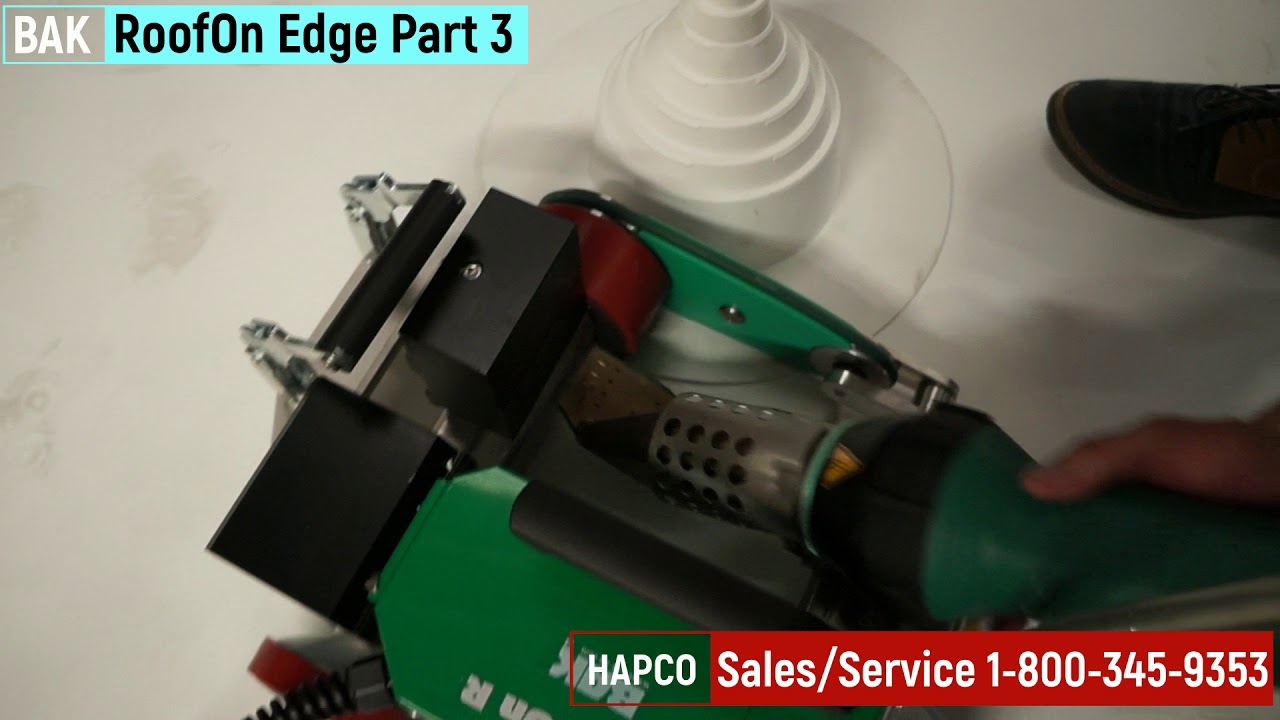

BAK RoofOn Edge

BAK RoofOn Edge

  • Simple – Easy – Affordable
  • Welds at only 0.8 inch from fascia
  • Can also be used for welding to the surface
  • 40mm weld width
  • Great for reducing time consuming hand welding around skylights, pitch pockets & pipe boots
  • The most diverse welder in the industry today.
  • Great on projects 20-70 square in size
  • Welds up to and including 60 mil membrane thickness
  • Available in 120v as well as digital options. Call for more information.

Available RoofOn Edge Products:

  • Roofon Edge 120V – Item #5230351
  • Roofon Edge 230V – Item #5230352
  • Roofon Edge Digital 120V – Item #5230353
  • Roofon Edge Digital 230V – Item #5230354

Available RoofOn Edge Kits:

  • Roofon Edge Deluxe Kit (Roofon Edge 230V with 7500W generator, metal toolbox #1013, Line cord #L101, L630P plug, extra weight #5230177) – Item # DPRE75EH
  • Roofon Edge Deluxe Kit (Roofon Edge 230V with 12KW Winco generator, metal toolbox #1013, Line cord #L101, L630P plug, extra weight #5230177) – Item # 5230352DK
  • Totally Portable Roofon Edge/Honda Kit (Roofon Edge 120V with L530P Plug, extra weight #5230177, metal toolbox #1013, L101, Honda EU2200 and EU2200 Companion generators, parallel cable) – Item #5230351TPK
  • Roofon Edge 230V 40mm with metal toolbox #1013 – Item # 5230352B
  • Roofon Edge 230V 40mm with extra weight #5230177 – Item #5230352C
  • Roofon Edge 120V with L539P plug and extra weight #5230177 – Item #5230351P

Available RoofOn Edge Parts and Accessories:

  • Roofon Edge element – Item #113269
  • Metal toolbox – Item #1013
  • Carbon brushes – Item #6600607
  • 100′ Line cord 230V w/GFCI & male / female WT plugs & no gen plug – Item #L101
  • 100′ Line cord 120V w/ L530P – Item #L120
  • GFCI 230V – Item #1023
  • GFCI 120V – Item #1320
  • Extra weight – Item #5230177
Categories: , Tags: , , ,

Description

Operating Instructions:

Catalog:

Spec Sheet:



Roofon Edge 120V - Tech Specs

Item Number: 5230351
Voltage: 120
Frequency (Hz): 50/60
Power Consumption (W): 2700
Max Temperature (° F): 68-1112
Mx. Power Input (A): 22.5
Speed (f/min): Standard 2-40 / Digital 0-40
Air flow max ° F(ltr/min): 500
Air flow (%): Adjustable
Emission (dB): 50
Dimensions (LxWxH in): 18″ x 13″ x 33.4″
Weight (lbs): 57 w/ with 16.4″ cord
Accessories: Special Accessories Available Upon Request

Roofon Edge 230V - Tech Specs

Item Number: 5230352
Voltage: 230
Frequency (Hz): 50/60
Power Consumption (W): 3400
Max Temperature (° F): 68-1112
Mx. Power Input (A): 15.0
Speed (f/min): Standard 2-40 / Digital 0-40
Air flow max ° F(ltr/min): 500
Air flow (%): Adjustable
Emission (dB): 50
Dimensions (LxWxH in): 18″ x 13″ x 33.4″
Weight (lbs): 57 w/ with 16.4″ cord
Accessories: Special Accessories Available Upon Request
