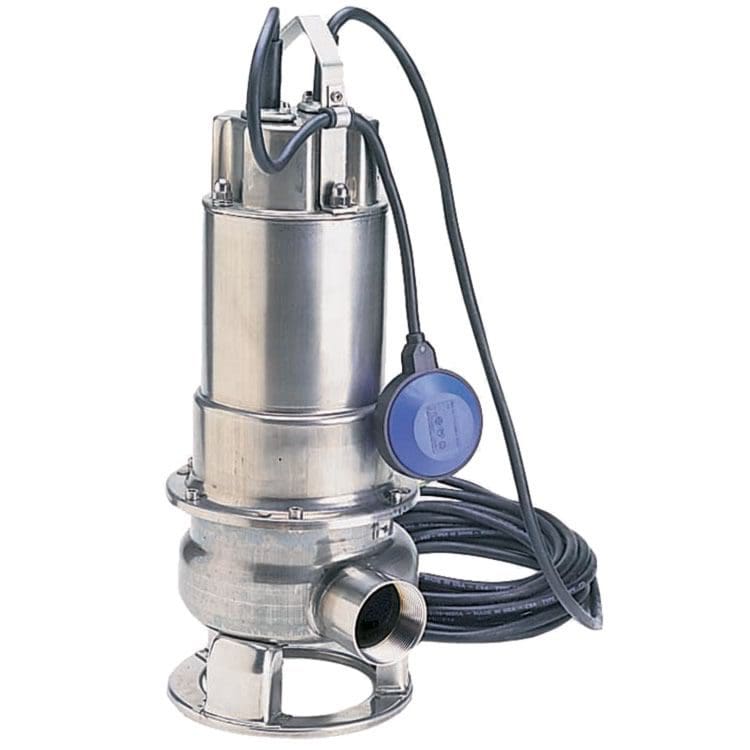

Honda Pump - WSP100AA
Features
- 1hp 115V submersible trash pump
- Side discharge
- 150 gal./min capacity
- Solids handling capability up to 2"
- Automatic non-mercury float switch
- Rated for continuous use
Technical Specifications
| Pump Type | Submersible Trash Pump |
|---|---|
| Starting Type | Automatic |
| Casing | Stainless Steel |
| Motor HP | 1 |
| Voltage | 115 |
| Starting Amps | 47 |
| Running Amps | 11.1 |
| Duty | Continuous |
| Motor Insulation | Class F |
| Overhead Protection | Built-In Thermal Automatic Reset |
| Discharge Type | Side |
| Discharge Capacity | 150 gal./ min. |
| Max. head (feet) | 42 |
| Port Diameter | 2.0 FNPT |
| Maximum Pressure | 18 psi |
| Solids Handling | 2.0" |
| Impeller | Single Channel Stainless Steel |
| Seals | Tandem Mechanical Carbon/Ceramic-upper SIC/SIC-lower |
| Cord Length | 25 feet |
| Cord Type | Heavy-Duty 115V |
| Dimensions (WxH) | 9.0" x 22.8" |
| Pump Diameter | 9.0" |
| Dry Weight | 41 lbs. |
| Residential Warranty | 1 year |
| Commercial Warranty | 1 year |
Available Accessories (SPECIAL ACCESSORIES AVAILABLE UPON REQUEST)
NOTES:
Technical specifications are subject to change. Please contact us to verify specifications.© 2008-2009 HAPCO, INC. ALL RIGHTS RESERVED. |
