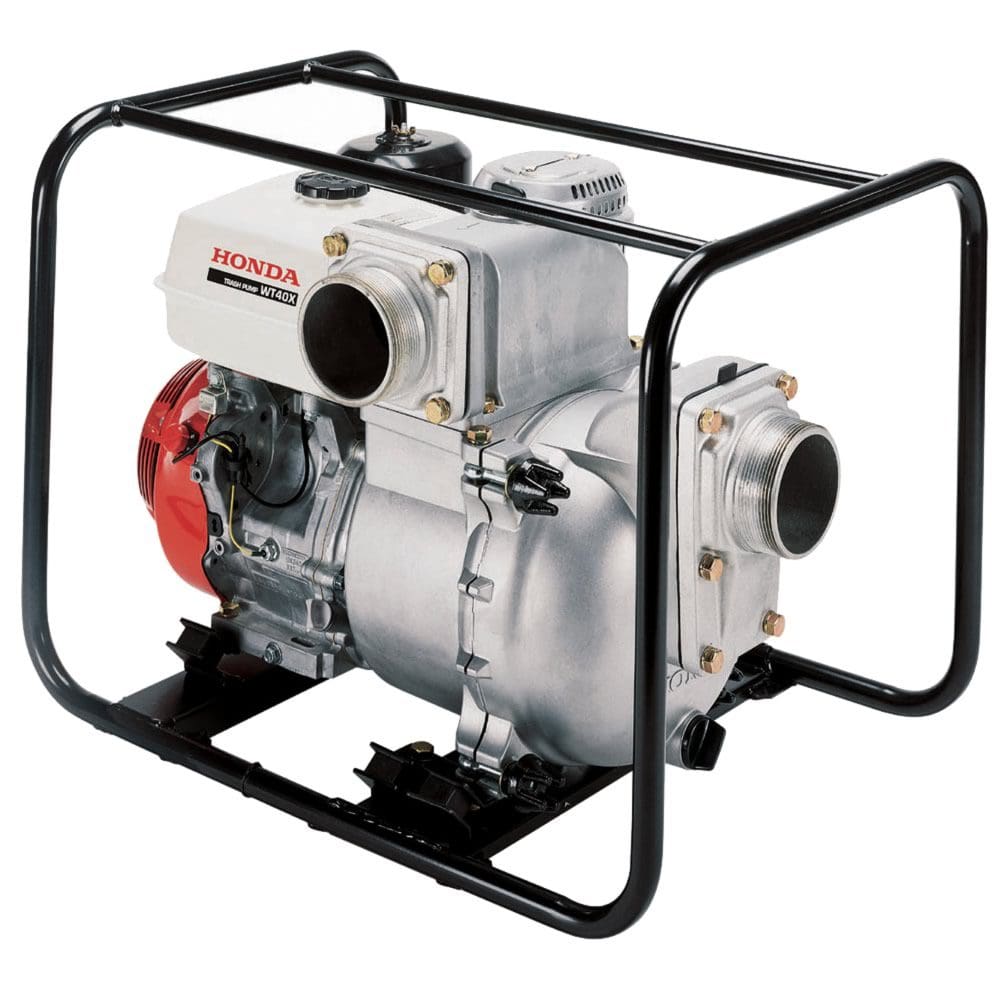

Honda Pump - WT40XK2A
Features
- Heavy-duty 4" construction trash pump
- Easy starting Honda OHV commercial engine
- 433 gal./min capacity
- Solid handling capability up to 1 1/16"
- Cast iron volute and impeller
- Quick clean out port
Technical Specifications
| Engine | Honda GX340 |
|---|---|
| Displacement | 337cc |
| Bore & Stroke | 3.2" x 2.5" |
| Compression Ratio | 8.0:1 |
| Oil Alert | Standard |
| Pump Type | Trash Centrifugal Self-priming |
| Volute | Rigid Mounted Cast Iron w/ Stainless Wear Plate |
| Impeller | Conical Cast Iron |
| Mechanical Seal | Silicone Carbide/Silicone Carbide |
| Priming Time | 160 sec @ 16.4 ft. |
| Drive System | Direct |
| Discharge Capacity | 433 gals. / min. |
| Suction Port Diameter | 4" NPT |
| Discharge Port Diameter | 4" NPT |
| Total Head Lift | 85 ft. |
| Suction Head Lift | 26 ft. |
| Maximum Pressure | 37 psi |
| Solids Handling | 1 1/16 inches |
| Dimensions (LxWxH) | 28.9" x 21.1" x 22.2" |
| Dry Weight | 172 lbs. |
| Strainer Part # | 78325-YG2-003 |
| Residential Warranty | 3 years |
| Commercial Warranty | 3 year |
Available Accessories (SPECIAL ACCESSORIES AVAILABLE UPON REQUEST)
NOTES:
Technical specifications are subject to change. Please contact us to verify specifications.© 2008-2009 HAPCO, INC. ALL RIGHTS RESERVED. |
