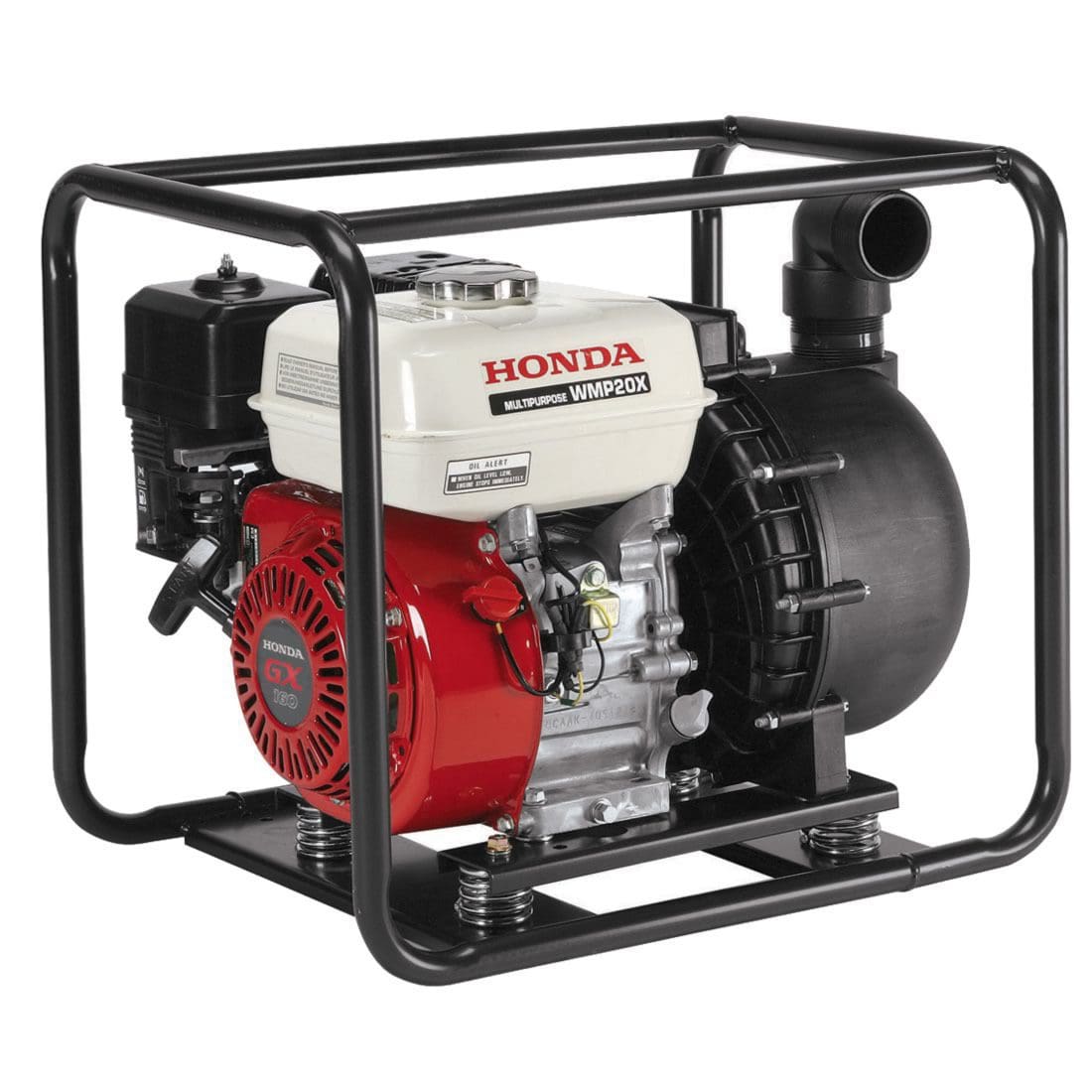

Honda Pump - WMP20XA1
Features
- Multi-purpose 2" pump
- Designed for pumping industrial and agricultural chemicals
- Easy starting Honda OHV commercial engine
- 220 gal./min capacity
- Thermoplastic pump housing for chemical capability
Technical Specifications
| Engine | Honda GX160 |
|---|---|
| Displacement | 163cc |
| Bore & Stroke | 2.7" x 1.8" |
| Compression Ratio | 8.5:1 |
| Oil Alert | Standard |
| Pump Type | Multi-purpose Centrifugal Self-priming |
| Volute | Rigid Mounted Fiberglass reinforced polyester |
| Impeller | Fiberglass reinforced polyester |
| Mechanical Seal | Carbon/Ceramic |
| Priming Time | 65 sec @ 16.4 ft. |
| Drive System | Direct |
| Discharge Capacity | 220 gals. / min. |
| Suction Port Diameter | 2" NPT |
| Discharge Port Diameter | 2" NPT |
| Total Head Lift | 105 ft. |
| Suction Head Lift | 26 ft. |
| Maximum Pressure | 45 psi |
| Solids Handling | N/A |
| Dimensions (LxWxH) | 20.5" x 15.7" x 17.7" |
| Dry Weight | 56 lbs. |
| Strainer Part # | 78325-YE0-003 |
| Residential Warranty | 3 years |
| Commercial Warranty | 3 year |
Available Accessories (SPECIAL ACCESSORIES AVAILABLE UPON REQUEST)
NOTES:
Technical specifications are subject to change. Please contact us to verify specifications.© 2008-2009 HAPCO, INC. ALL RIGHTS RESERVED. |
