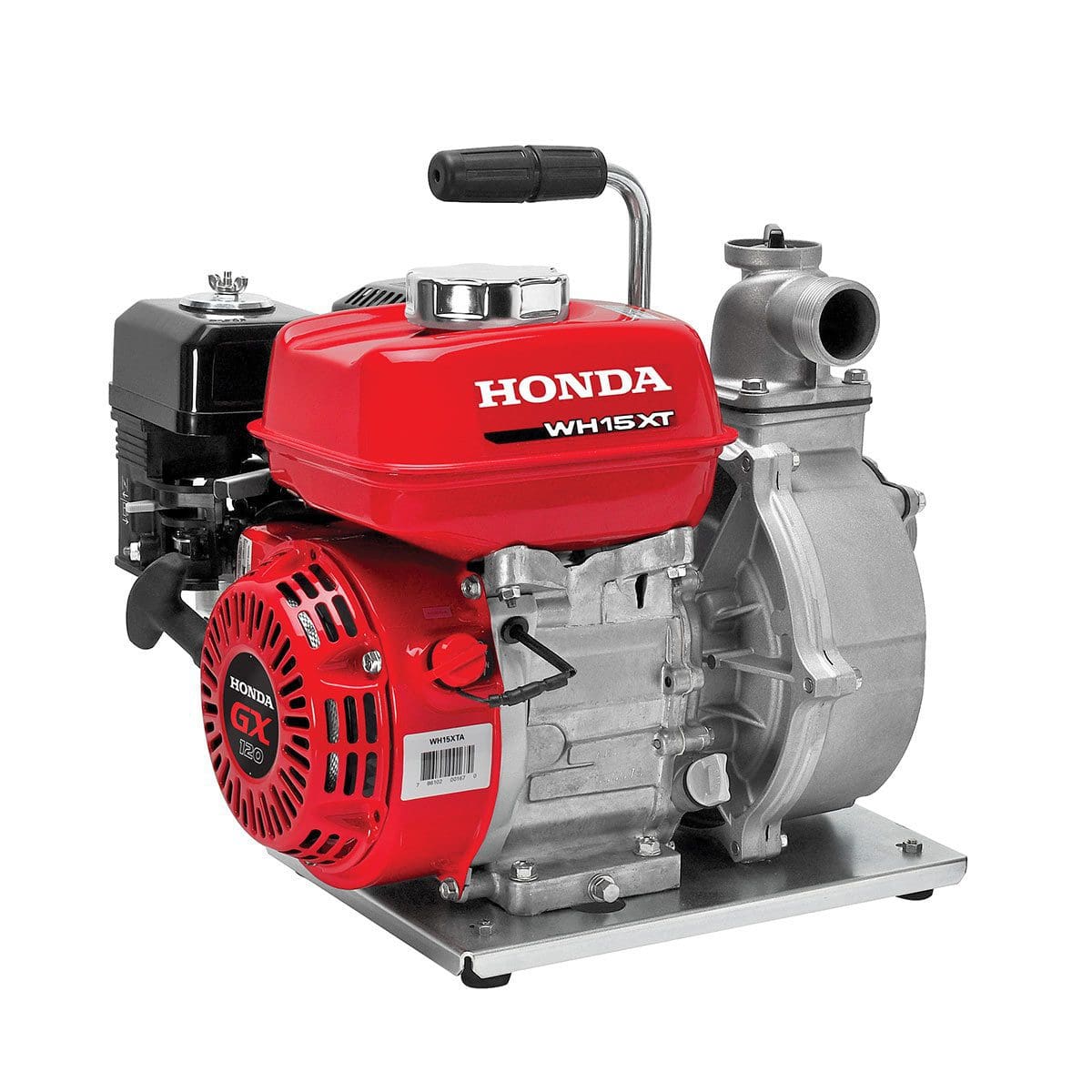

Honda Pump - WH15XK1C1
Features
- High pressure 1.5" pump.
- Easy starting Honda OHV commercial engine.
- 115 gal./min. capacity.
- 55 psi max.
- Cast iron volute and impeller.
Technical Specifications
| Engine | Honda GX120 |
|---|---|
| Displacement | 118cc |
| Bore & Stroke | 2.4" x 1.7" |
| Compression Ratio | 8.5:1 |
| Oil Alert | N/A |
| Pump Type | High Pressure Centrifugal Self-priming |
| Volute | Rigid Mounted Cast Iron |
| Impeller | Cast Iron |
| Mechanical Seal | Carbon/Ceramic |
| Priming Time | 40 sec @ 16.4 ft. |
| Drive System | Direct |
| Discharge Capacity | 115 gals. / min. |
| Suction Port Diameter | 1.5" NPT |
| Discharge Port Diameter | 1.5" NPT |
| Total Head Lift | 127 ft. |
| Suction Head Lift | 26 ft. |
| Maximum Pressure | 55 psi |
| Solids Handling | N/A |
| Dimensions (LxWxH) | 20.1" x 15.2" x 17.9" |
| Dry Weight | 48.5 lbs. |
| Strainer Part # | 78325-YB7-020 |
| Residential Warranty | 3 years |
| Commercial Warranty | 3 year |
Available Accessories (SPECIAL ACCESSORIES AVAILABLE UPON REQUEST)
NOTES:
Technical specifications are subject to change. Please contact us to verify specifications.© 2008-2009 HAPCO, INC. ALL RIGHTS RESERVED. |
